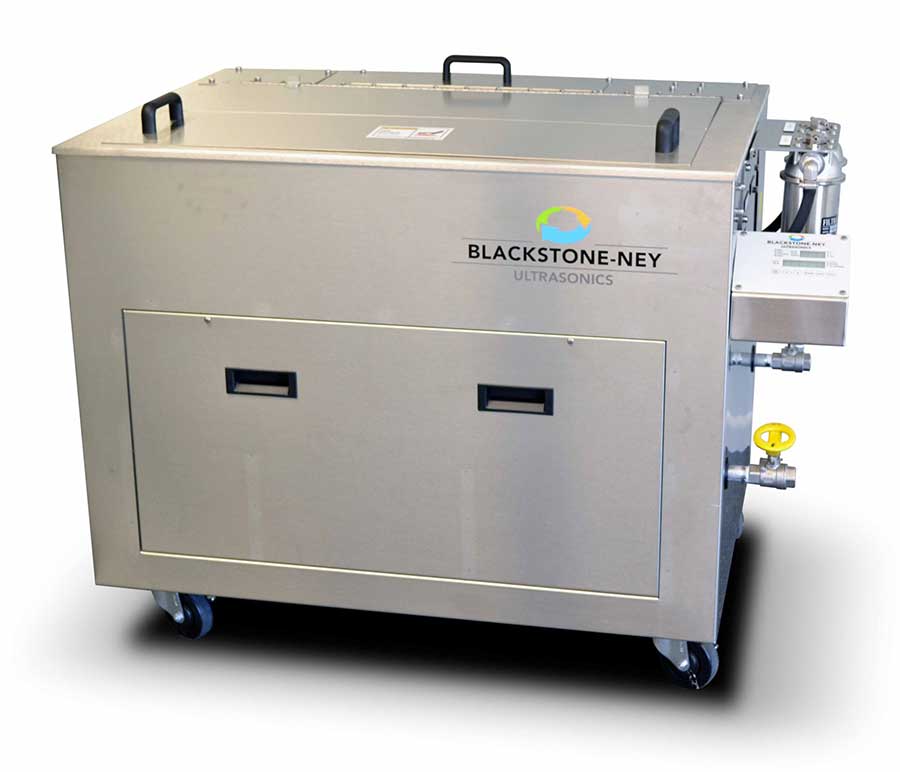

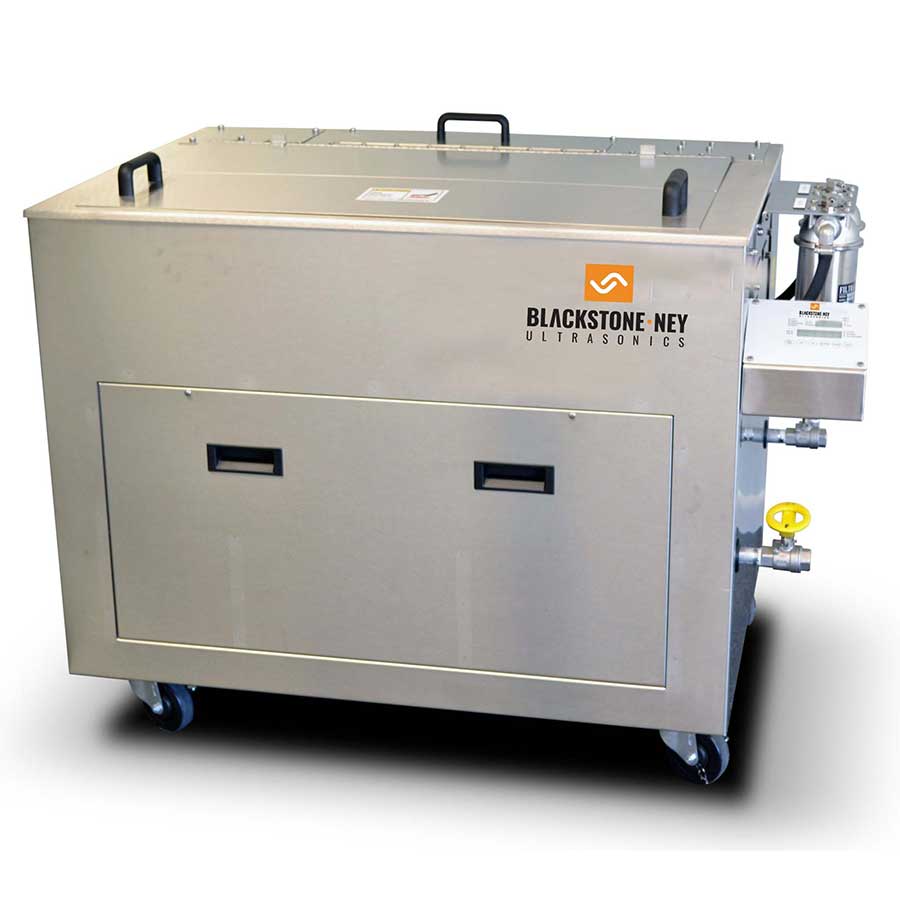

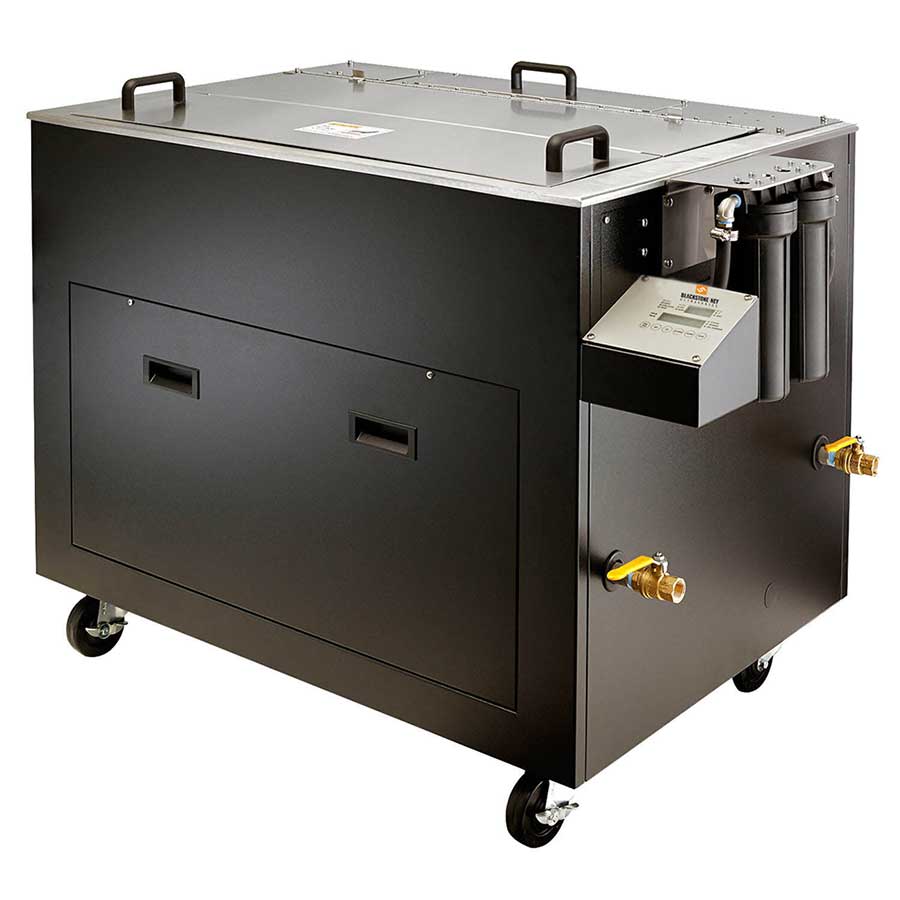

GMC Series Ultrasonic Cleaning System
Click on a gallery photo to enlarge
GMC offers ultrasonic cleaning systems, readily available in two standard sizes. The larger variant can handle parts measuring up to 35 inches in one dimension and weighing up to 125 pounds. Both units are fully self-contained, equipped with casters for easy mobility, making it portable and can operate on commonly available power supplies. This versatility allows them to be conveniently deployed for in-place or utility cleaning as needed.
Each system features a pump and dual cartridge filtration, along with a surface sparger, automated controls for heat pump and ultrasonics, a lid, and one standard basket. Additionally, a drain back tray attached to the tank’s side enables draining one basket of parts while cleaning another.
For environments requiring chemical compatibility with aggressive caustic agents, an optional stainless-steel package for the GMC is available.
These portable ultrasonic parts washers find applications across various fields, including:
- Automotive maintenance, rebuilding, and restoration
- Cleanup of flood, fire, and storm damage
- Cleaning metallic and ceramic filters
- Maintenance of printing equipment
- General maintenance cleaning in shop environments
- Precision cleaning in medical settings
Furthermore, they are suitable for other typical applications such as:
- Transmission rebuilding and engine remanufacturing in automotive industries
- Filter cleaning
- Cleaning printing fountains, anilox rolls, and other press parts
- Tool room cleaning
- Design Specs
- Optional Equipment
- Video
Design Specs
| Cleaning Sequence: | Wash or Rinse |
| Parts Orientation: | Fixtured or Basket |
| Process Type: | Batch |
| Production: | Low to High Volume |
| Max Work Envelope GMC 1818 | Up to 16″ Wide x 16” Deep x 8” High |
| Max Work Envelope GMC 3523 | Up to 32.5″ Wide x 17.25 Deep x 11” High |
| Method of Loading / Unloading: | Manual |
| Footprint GMC 1818: | Starting at 34.5” Wide x 40” Front to Back x 44” High (Varies by Model) |
| Footprint GMC 3523: | Starting at 31.5” Wide x 49” Front to Back x 37” High (Varies by Model) |
| Cleaning Mechanisms: | Ultrasonics |
| Controls: | 7 Day Programmable Timer for Heat, Ultrasonics, & Filtration. |
Optional Equipment
- 25kHz or 3-Frequency (40,72, 104)
- Auto-Fill
- Task Light
- Oil Skimmer
- Additional Parts Basket
- Voltage Conversion Kits
- 480V to 240V
- 208V – 240V
