AgiSonic®: Heavy Duty Ultrasonic Cleaning Machine

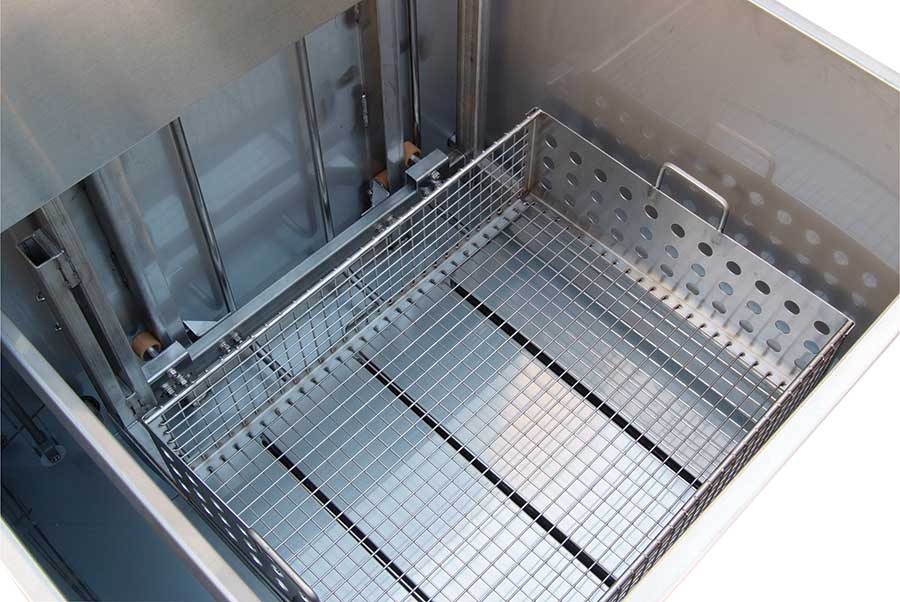

AgiSonic®, constructed entirely of stainless steel, is a robust ultrasonic cleaning machine designed for heavy duty parts washing with vertical parts agitation. Available in five standard sizes, each system features an air-powered agitation platform that facilitates loading and unloading and agitates parts with a 4″ stroke up to 15 times per minute.

Key features include:

Ultrasonics and Platform Agitation for Powerful Cleaning
- High intensity 40kHz ultrasonics; Optional multifrequency systems.
Agitation and Lift Capacity
- Up to 1,000 lbs (model dependent).
Automatic Lid – Standard on all models.
Stainless Steel Recirculation Pump, Plumbing, and Filter Housing
- Includes a 100µm filter bag.
Surface Sparger and Belt-Type Skimmer in Overflow Weir
- Efficient oil removal.
Low-Liquid Level Protection
- For heater, ultrasonics, and pump.
HMI/PLC Control
- Seven-Day Timer for Tank Heating Control
- User-programmable recipes.
Digital Controls with Display
- For heat, pump, agitation, and ultrasonics.
High-Flow Fill and Drain Valves
High-Volume Production Cleaning Capability
- Work cell compatible.

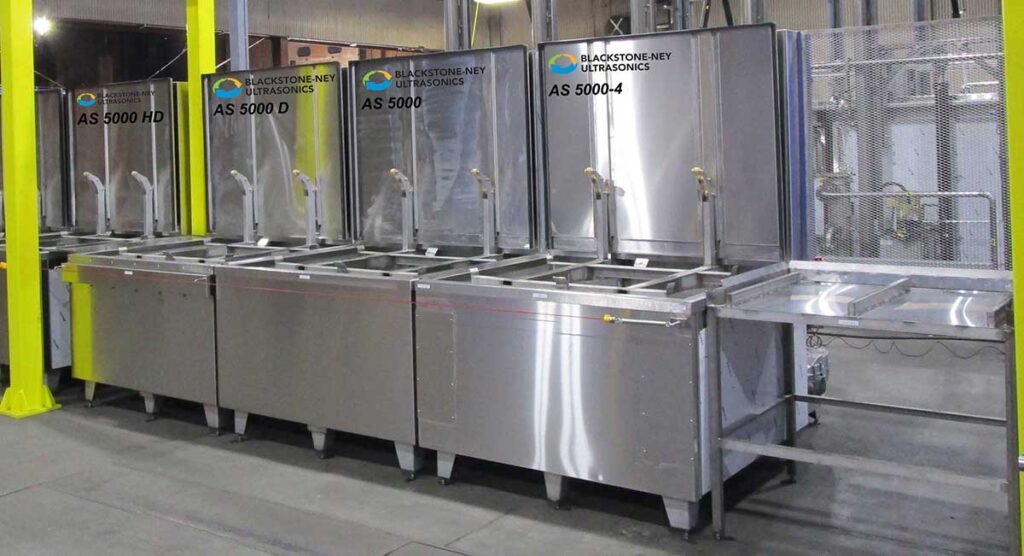

Multi-Station Lines Configuration
- Standard roller modules and load tables.
Optional Modules Available
- Rinse, spray, and hot-air recirculation drying.
Optional Automation Solutions
- For multi-station lines.

The AgiSonic parts washers are ideal for automotive, aerospace, medical, and general industrial applications. These systems can operate in the harshest industrial environments or in precision cleaning applications.

Modular in design, the AgiSonic is well adapted to multi-tank ultrasonic cleaning systems where wash, rinse, rust inhibition, and/or drying are needed. The AgiSonic can be provided with manual transfer, automatic lid, or automated workflow if desired.

Completely self-contained and requiring a three-phase power supply hookup, the largest AgiSonic machine can accommodate a platform load up to 1000 lbs.

Typical Applications:

Automotive – Transmission Re-Builders, Engine Re-Manufacturing
Aerospace Components
Industrial Parts Cleaning
Wheel & Rim Cleaning
Mold Cleaning

Download Brochure

Model	Maximum Workload	Liquid Capacity	Weight Capacity	Ultrasonics @ 40khz	Heat

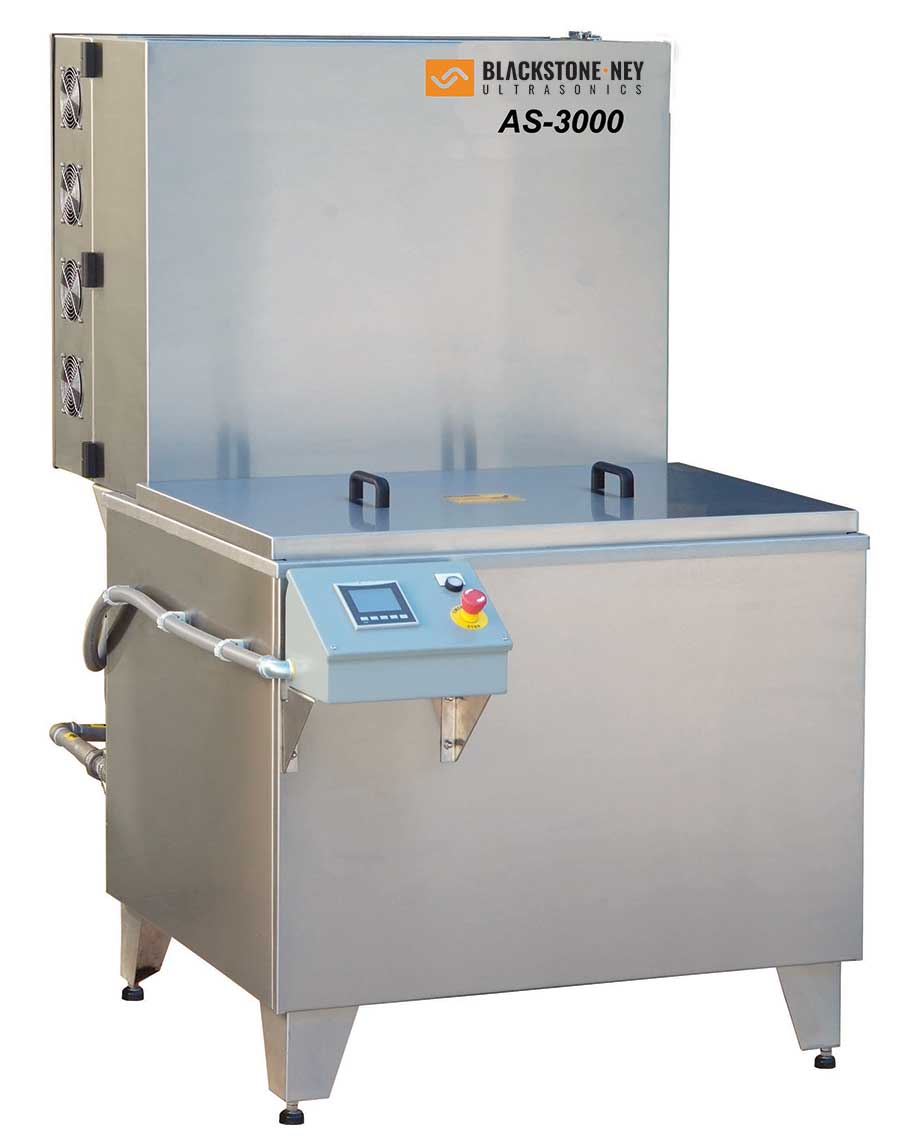

AS3000	31” × 22” × 17” (787mm ×559mm × 432mm)	92 Gallons (348 Liters)	125 lbs (57 kg)	2,880 watts	6,000 watts	Request Quote
AS4000	35” × 27” × 17” (889mm × 686mm × 432mm)	123 Gallons (466 Liters)	250 lbs (114 kg)	3,840 watts	9,000 watts	Request Quote
AS5000	44” × 36” × 18” (1,118mm × 915mm × 457mm)	202 Gallons (765 Liters)	500 lbs (227 kg)	4,800 watts	12,000 watts	Request Quote

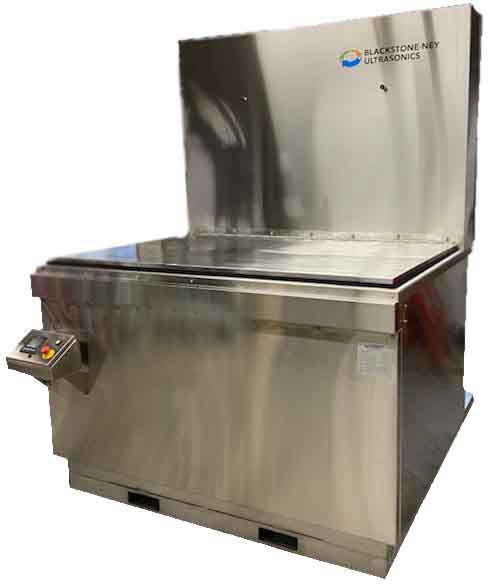

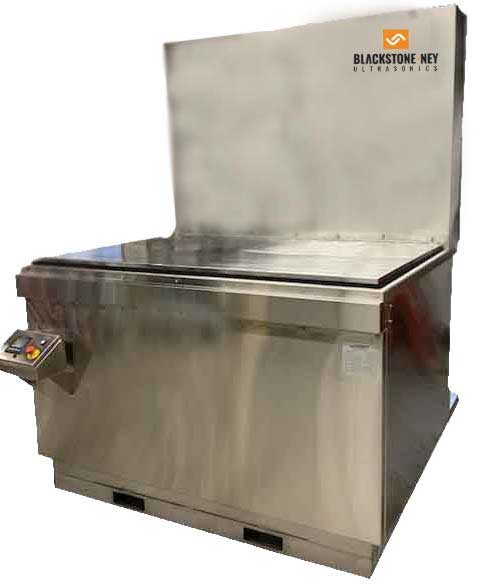

AS6000	60” × 40” × 28” (1,524mm × 1016mm × 711mm)	675 Gallons (2555 Liters)	500 lbs (227 kg)	5,760 watts	24,000 watts	Request Quote
AS8000	88" x 50" x 42" (2235mm x 1245mm x 1067mm)	1100 Gallons (4164 Liters)	1000 lbs (454 kg)	7680 watts	48,000 watts	Request Quote

Design Specs
Optional Equipment

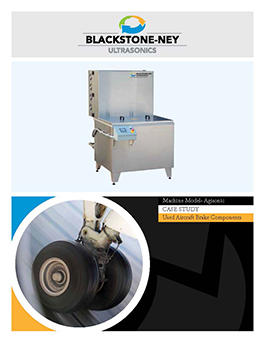

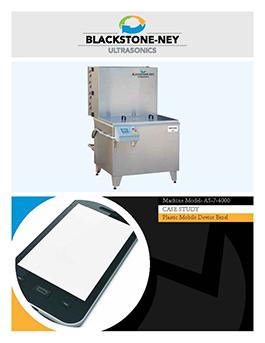

Case Studies
Videos

Design Specs

Cleaning Sequence:	Wash (Multiple Rinse or Dry Stages Available)
Process Type:	Batch / Inline with automation option
Part Orientation:	Fixtured or Basket
Max Work Envelope:	Up to 40” Wide x 30” Deep x 17” High
Method of Loading / Unloading:	Manual or Optional Automated System
Footprint:	Starting at 38” wide x 51” deep x 68” high (Varies by number of stages)
Cleaning Mechanisms:	Immersion / Agitation with Ultrasonics
Controls:	Programmable with HMI/PLC Touch and 7 Day Timer for Heal Control
